Diversen

Description

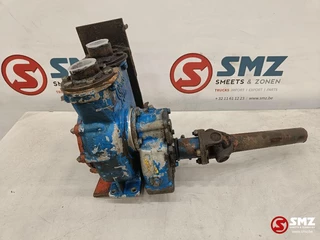

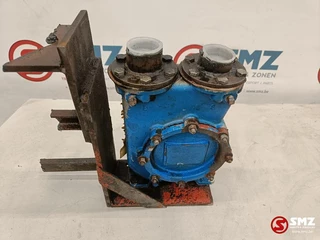

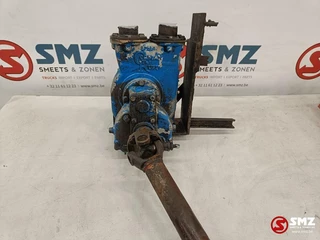

02F1-GR Occ Hydraulische pomp Gorman-Rupp 02F1-GR UMP SPECIFICATIONS Size: 2" x 2" (51 mm x 51 mm) NPT - Female. Casing: Aluminum Alloy 356-T6. Maximum Operating Pressure 234 psi (1613 kPa).* Enclosed Type, Six Vane Impeller: Aluminum Alloy 356-T6 w/Gray Iron 30 Hub Insert. Pinion Shaft: Alloy Steel 4320. ReplaceableWear Ring: Copper Alloy C93200. Removable Cover Plate: Gray Iron 30, 6 lbs. (3 kg). Seal: Type 21, Mechanical, Self-Lubricated. Carbon Rotating Face. Ni-Resist Stationary Face. Fluorocarbon Elastomers (DuPont Viton or Equivalent). Stainless Steel No. 18-8 Cage and Spring. Maximum Temperature of Liquid Pumped, 160 F (71 C).* Seal Guard: Brass Tubing ASTM B-135. Gearbox Housing: Gray Iron 30. Gearbox Lubrication: SAE 90 Gear Oil. Gear: Alloy Steel 4620. Gear Ratio: 5.69:1 Increase. Bearings: Open Single Row Ball. Flanges: Gray Iron 30. Gaskets: Buna-N w/Cork and Vegetable Fiber OEM : 02F1-GR Article nr.: S082999214 Used centrifugal pump 02F1-GR
