Trime

Omschrijving

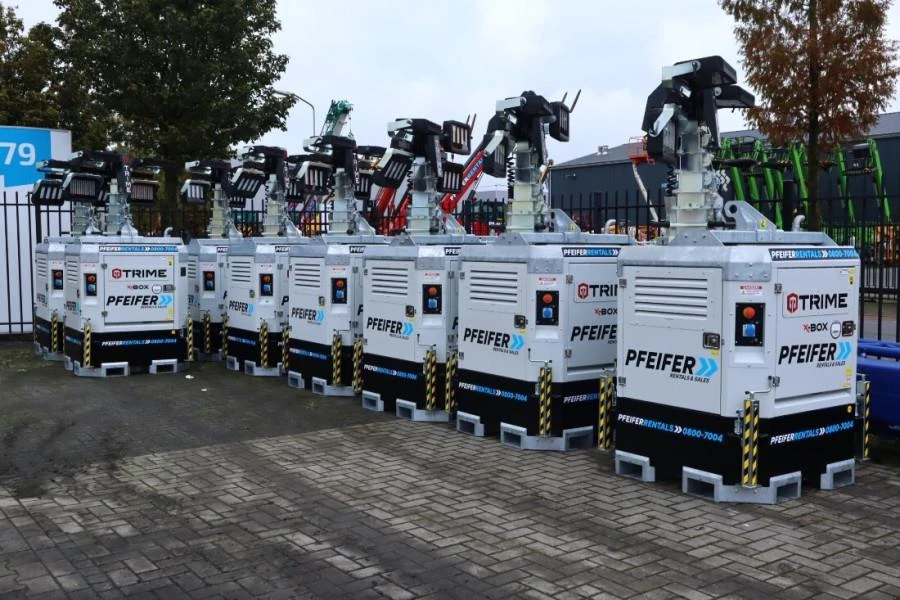

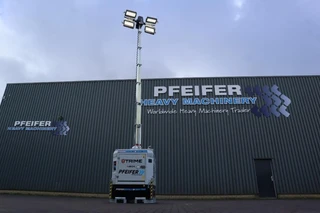

This Trime X-Box 4 x 320 LED has a valid inspection! Manufacturer: Trime Typ: X-Box 4 x 320 LED Building year: 2024 Serial nr: 350240062 Fuel: Diesel Floodlights: Type: LED Power (each) 320W Floodlights number: 4 Illuminated area (SQM) 9300 Mast Lifting method: Hydraulic Max Height: 8,5 m Max Wind Speed: 110 km/h Rotation: 340° Alternator: Model: Synchronous Frequency (Hz) 50 Insulation class: H Degree of protection: IP 23 Single phase voltage: 33,5kVA - 230V Auxiliary outlets: 1 kVA Engine Model: Kubota Z482 Fuel: Diesel r.p.m: 1500 Tank capacity (l) 220 Consumption (l/h) 0,55 Running time: 400h Noise leveldB(A) at 7m: 65 * Multi-directionally adjustable and tiltable floodlights * 7 sections hydraulic vertical tower 8,5 m, 340° rotatable * Standard light sensor for machine power on and off * Galvanized metalworks * 80 µm powder coating * Very compact dimensions, up to 22 units per truck * Central lifting eye longitudinal and transversal forklift pockets for effective handling * Plug & play, colour coded cables and connectors * Guided main coiled cable to avoid damage during tower operation * Digital control panel and fuel level indicator * Circuit breaker for electrical protection against overload * External emergency stop button * Fully bunded tank, 110% * Certified wind stability up tp 110 km/h * 4 extendable & height adjustable stabilizers * On board levels for guidance during stabilization CE (Declaration of Conformity). More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors.
