Teupen

Omschrijving

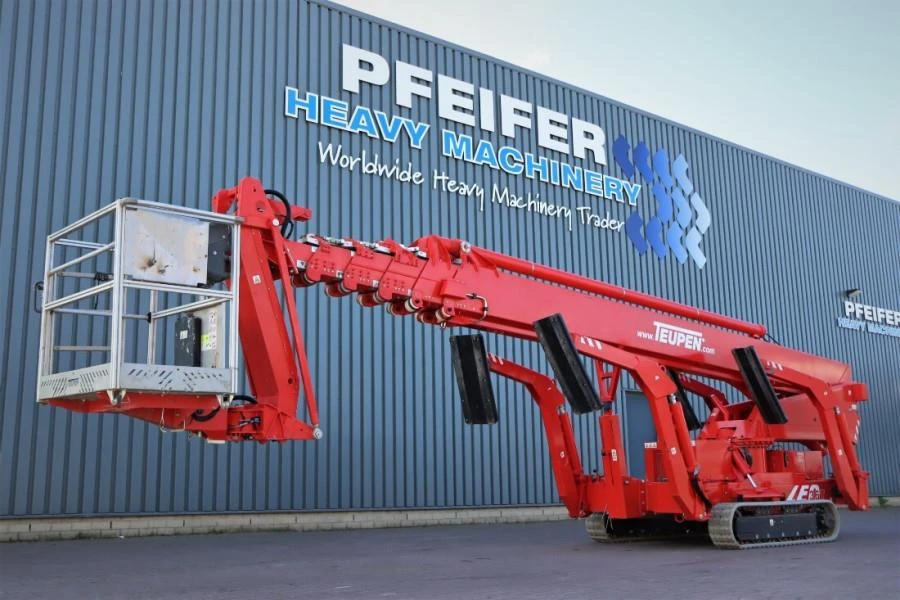

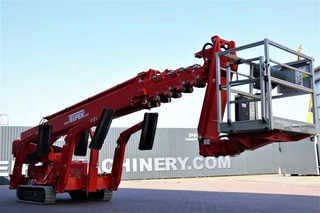

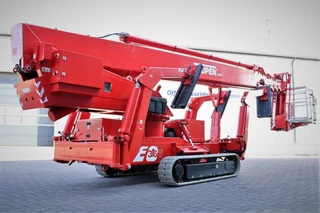

TRACKED 36M BI-ENERGY TELESCOPIC SPIDER BOOMLIFT TEUPEN LEO 36T YEAR 2017. Manufacturer: Teupen Typ: LEO 36T Year: 2017 Fuel: 230 V Electric Motor + Diesel Serial number: 10001610 Electric Hours: 1.224 h Engine Hours: 1.189 h Working Height max: 35.5 m Horizontal outreach, max. (200kg) 13.9 m Horizontal outreach, max. (80kg) 15.6 m Platform capacity max: 200 kg Jib, movable: 180º Platform, rotatable: 180º Turntable rotation, max. 450º To be jacked up on ground slope of: 16.7º / 30.0 % Track drive, height-and width-adjustable: 22 / 17 cm Gradeability, max. 16.7 º / 30.0 % Slope angle max: 16.7 º / 30.0 % Travel speed max: 3 km/h CE (Declaration of Conformity). All necessary documents and papers. More detailed pictures / product movie on our website. Above specifications are subject to change without prior notice and subject to errors.
