Snorkel

Omschrijving

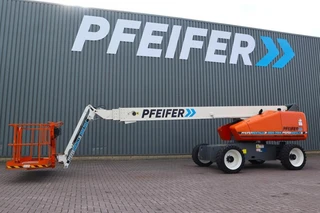

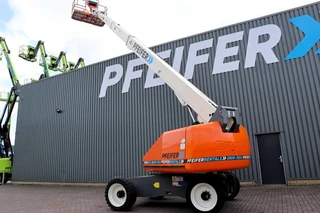

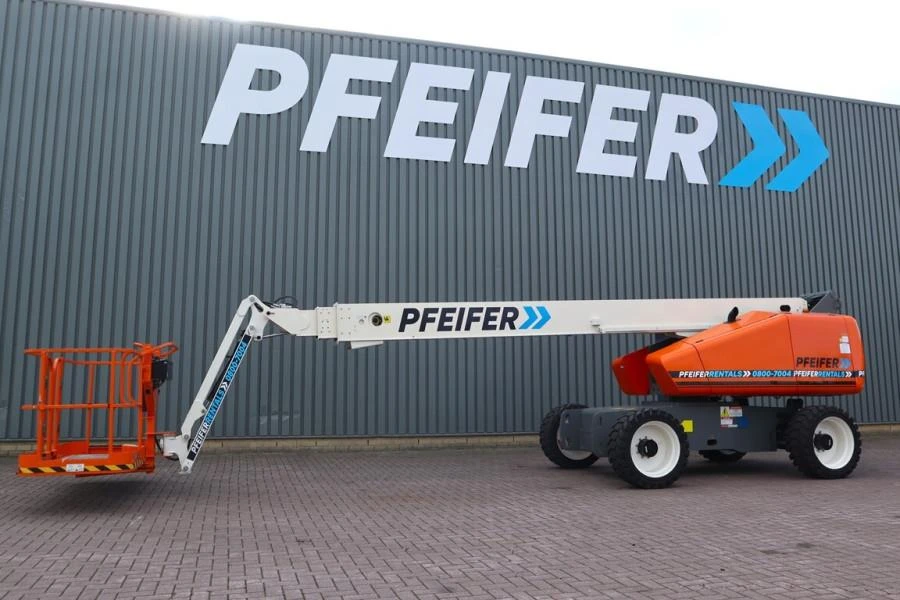

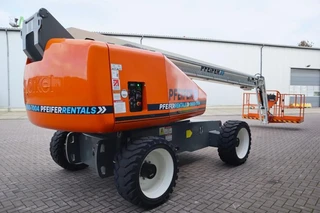

Self-Propelled Boomlift Snorkel 660SJ YEAR 2025 This machine has a valid inspection and can be sold with warranty. Inform about our conditions! This machine is also available for rent! Manufacturer: Snorkel Typ: 660SJ Manuf. year: 2025 Fuel: Diesel Serial number: 660SJ-01-250800035 Working Hours: 129 h Working Height 22 m Horizontal Outreach: 17.7 m Platform Size: 2.44m x 0.91m Max Drive Height: 20.0m Platform Capacity – Unrestricted: 272kg Platform Capacity – Restricted: 454kg Max Wind Speed: 12.5m/s Max Drive Speed (Stowed): 5.6km/h Max Drive Speed (Elevated): 0.96km/h Tyres: 355/55 D625 foam filled lug Drive System: 4 wheel drive Controls: Proportional drive, raise, slew, extend, jib & platform rotate Jib Length: 1.67m Jib Arc: 135º (+70º/-65º) Platform Rotation: 150º Turret Rotation: 360° continuous Tailswing: 1.20m Ground Clearance: 340mm Gradeability: 45% Inside Turning Radius: 3.06m Outside Turning Radius: 5.21m Power Source: Deutz T4F, Stage V: (75HP) Auxiliary Power Unit: 12V DC Machine Dimensions: Overall Length: 10.1m Overall Width: 2.46m Stowed Height: 2.52m Transport Dimensions: Transport Length: 8.30m Transport width: 2.24m Transport Height: 2.90m Weight: 12.982kg CE (Declaration of Conformity). More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors
