Snorkel

Omschrijving

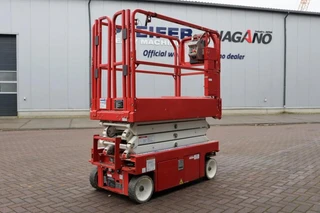

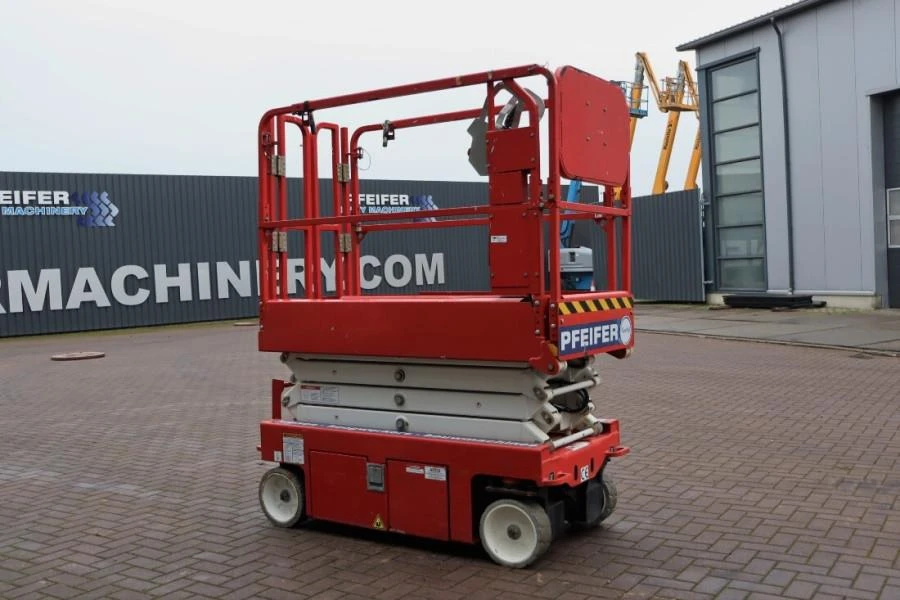

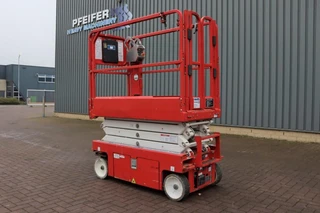

AVAILABLE DIRECTLY FROM STOCK SNORKEL S3215E. 7.8M ELECTRIC SCISSORLIFT. This SNORKEL S3219E Is also available for rental. Manufacturer: Snorkel Typ: S3219E Fuel: Electric Serial number: S3219E-04-000363 Weight (CE): 1.611 kg Load Capacity: 250 kg Load Capacity when extended: 113 kg Working height: 7,8 m Platform floor level height: 5,8 m Overall length: 1,78 m Overall width: 0,81 m Overall height (rails up): 2,11 m Transport height (rails down): 1,65 m Platform dimensions (length /width): 0,68x1,64 m Platform extension: 0,9 m Ground clearance (stowed): 6,4 cm Ground clearance (raised): 1,9 cm Turning radius (inside): 0,1 cm Turning radius (outside): 1,63 m Travel speed (stowed): 3,2 km/h Travel speed (raised): 0,6 km/h Batteries: 24V DC battery electric Integrated battery charger: 90-240V, 25amp Gradeability: 25% Max. working slope: 1,5°/3° 12 x 4 Non-marking tyres All necessary documents and papers. More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors.
