Cummins

Omschrijving

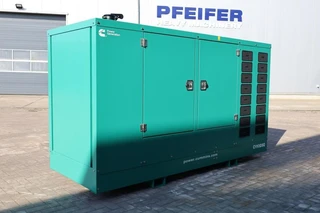

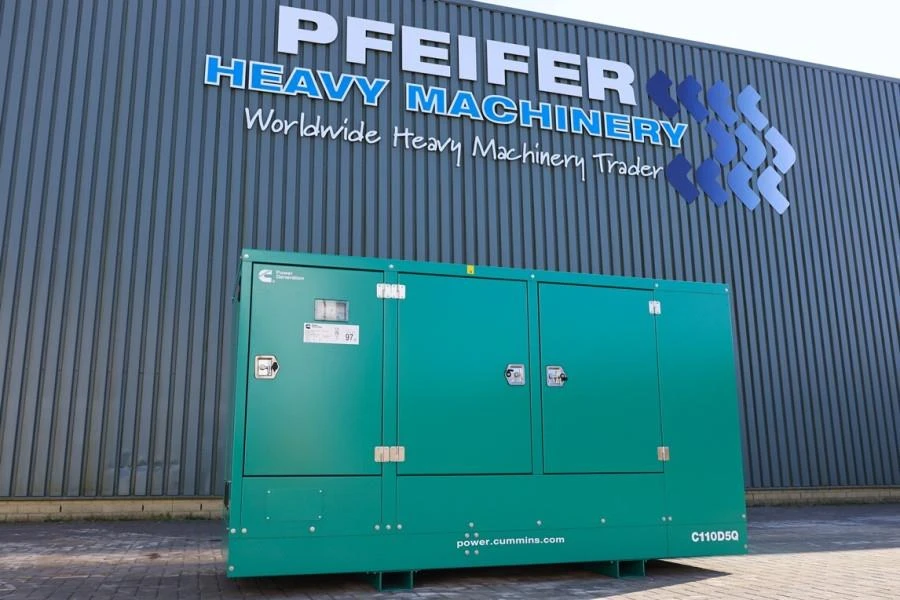

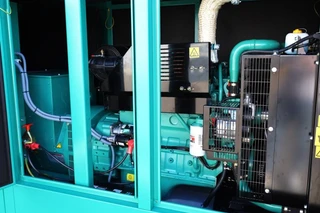

Manufacturer: Cummins Typ: C110D5Q Manuf. Year: 2025 Serial nr: K24I440118 Fuel: Diesel Generator Set Model: C110D5Q Controller: PowerStart 600 Voltage: 400/230V Frequency: 50Hz ESP Power: 110 kVA / 88 kW PRP Power: 100 kVA / 80 kW Alternator: Stamford UC274C Engine Manufacturer: Cummins Model: 6BTA5.9-G5 Design: 6-cycle, in-line, turbocharged after-cooled Displacement: 5.9 L Rated Speed: 1500 RPM Fuel System: Direct injection Cooling System: 50°C ambient radiator Lube Oil Capacity: 14.3L (standard) / 16.4L (total system) Fuel & Efficiency Fuel Tank Capacity: 400L Autonomy (@ 75% PRP load): 21 hours Fuel Consumption (liters per hour): 25% load: 7.4 50% load: 12.9 75% load: 19.4 100% load: 27.2 Battery System Design: Lead-acid, flooded/SLI technology Voltage: 12V Capacity: 140 Ah Battery Charger: Standard 12/24VDC, 4A Alternator Design: Brushless, single bearing Insulation System: Class H Excitation Type: Self-excited Voltage Regulation: ±1% Frequency Regulation: Isochronous Exhaust & Cooling Exhaust Gas Flow (@ rated load): 21.4 m³/min Exhaust Gas Temperature: 533°C Max Exhaust Back Pressure: 10.25 kPa Cooling System Airflow: 3.44 m³/sec Dimensions & Weight LxWxH: 3.100mm x 1.180mm x 1.950mm Wet Weight (kg) 1.890 CE (Declaration of Conformity) More detailed pictures / product movie on our website. pfeifermachinery.com Above specifications are subject to change without prior notice and subject to errors.
